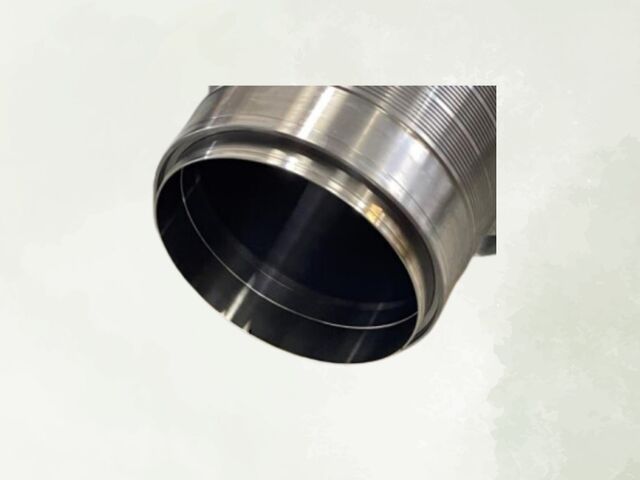

GMC's Hybrid Connector Series is a cutting-edge solution combining the features of the PR Series connector. Designed to be machined directly onto the pipe, this hybrid connector utilises a pin and coupling connection system.
The Hybrid Connector Series is specifically developed for demanding applications, such as Steel Catenary Risers, in water depths of up to 4,000 meters. By incorporating the strengths of both the PR Series and SW Series connectors, the Hybrid Connector Series offers enhanced performance and versatility.
Specifications
- Size Range: 3 1/2" - 26" (90mm - 660mm)
- Tooth Type: Concentric thread - Re-usable
- Make Up Type: Linear hydraulic
- Maintenance Requirements: None, routine inspectable via conventional inspection technology
- Pipe Grades: X52, C110, Inconel 625
- Sour Service Ready: Yes
