Objectives
Enable wellheads and PLETS to be connected to manifolds quickly with “off the shelf” configurable prefabricated spool sections.

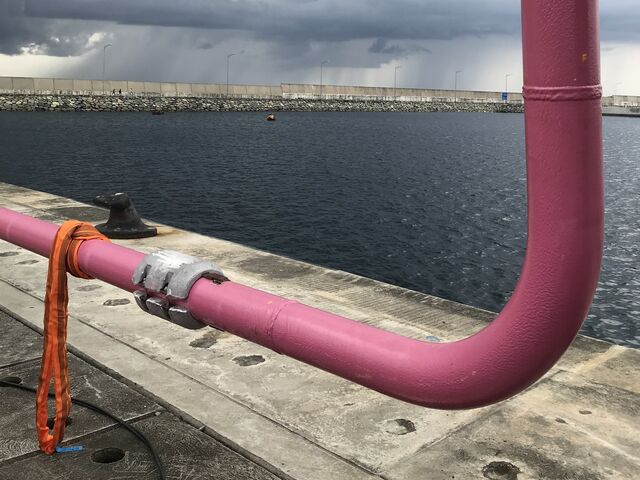

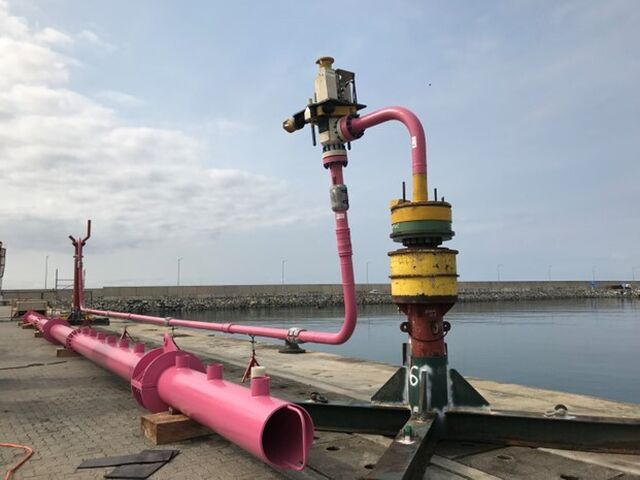

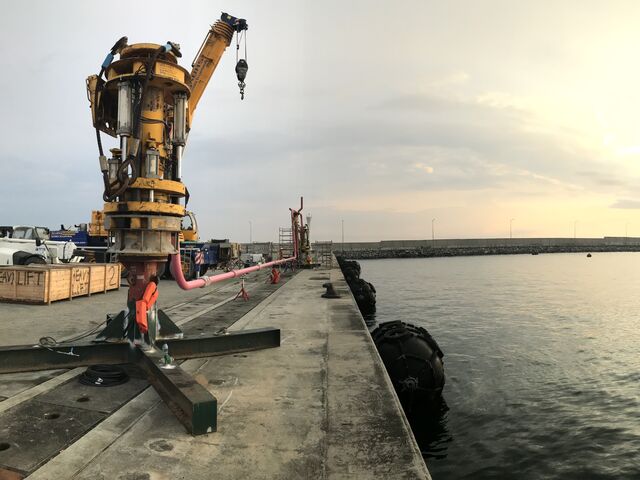

GMC’s Jumper in a Box is an innovative proven solution using the GMC’s PR (Pipeline and Riser) Series Mechanical Connector that allows jumpers/ spools to be installed offshore within hours of completing the metrology.
It utilises offshore configurable prefabricated spool sections and GMC’s connection technology.
Operation
The pre-angled spool sections, are quickly adjusted and snapped together offshore to match the configuration defined from the metrology. Simple deployment using a crane and an adjustable spreader bar to meet any jumper profile.
Benefits
- Superior Fatigue life (40+ years design service life).
- Triple metal to metal seal barriers - suitable for HPHT Flowlines.
- Configurable for any length or restricted space.
- Eliminates minimum bend radius restrictions.
- No limitations in size of the ID bore.
- Rapidly configured for simple deployment.
